Applications

Separation Range:

• Inert gases: Nitrogen, Carbon Dioxide and Oxygen
• Hydrocarbons: C1 - C5, C14

Sample Range:

• Natural Gas samples up to C14

Lower Detection Limit:

The lowest detection limit (LDL) of the NGA Extended GPA2286 Analyzer is:

• 0.02% for inert gases
• 0.01% for hydrocarbons

Configuration

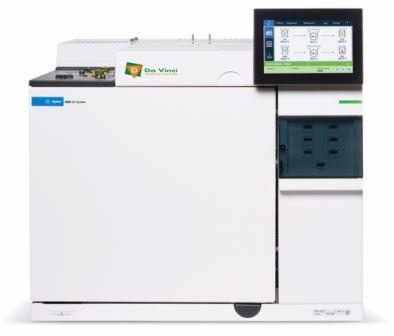

The DVLS Natural Gas Analyzer GPA 2286 is based upon the Agilent Gas Chromatograph and consists of:

• TCD (Thermal Conductivity Detector) with EPC (Electronic Pressure/Flow control)
• FID (Flame Ionization Detector) with EPC (Electronic Pressure/Flow control)
• Gas Sampling Valves in series (two pcs)
• Column Isolation Valves (two pcs)
• Heated Valve Box
• Column configuration according to GPA 2286

Options

• The Agilent GC is controlled by Agilent OpenLab ChemStation or other CDS software.
• DVLS PetroReporter GasThe DVLS PetroReporter software automates the data processing and reporting of the gas calculations.
