Applications

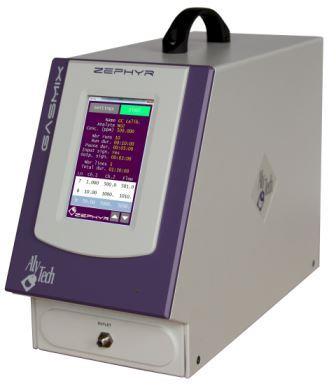

The Zephyr can create accurate multipont dilutions from a concentrated gas standard and a diluent, make gas sample steam dilution or be employed for a supply of a synthetic gas atmosphere to a reactor or a glove box. Typical applications include:

• Linearity check and calibration of GC with FID, TCD, PID, PHID,SCD, MS and other detectors
• Calibration of gas analysers for refinery process control
• Linearity check and calibration of trace elemental analysers
• Validation / calibration of microGC for biogas characterisation
• Creation of synthetic atmosphere in reactors for aging or oxidation
• And much more applications

Options

With an optional battery, the Zephyr can assure the interrupted gas supply during 8 hours, in case of main power cut-off or in a field operation.

Benefits

• Compatible with aggressive gases and active compounds like trace sulfurs, ammonia, VOC
• Small footprint, transportable
• Autonomy 8 hours on internal battery (option)
• Built-in software, no need for a PC

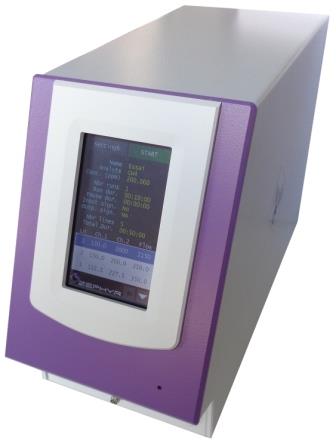

• Intuitive interface, ease of use
• Smart Sequence Builder feature helps creation of multi-point curves in one click
• Memory for 10 multi-segments dilution sequences
• Calibration curves for each used gas
• Fully compliant with standard ISO6145-7
• Can communicate with an analyzer via dry contact or TTL

Downloads

AlyTech Zephyr Flyer
