Application

The LPG system complies with ASTM D2163, EN27491, UOP373 and UOP603 to determine

• C1 – C5 hydrocarbons in LPG, Ethylene, Propylene in liquid form if necessary
• CO, CO2 at low ppm level
• Various calculation parameters e.g. vapour pressure, density.


Sample Range:

• LPG


Detection Limit:

The lowest detection limit (LDL) of the DVLS LPG Analyer system is:

• 0.001% for hydrocarbons
• 1 ppm CO, CO2

Configuration

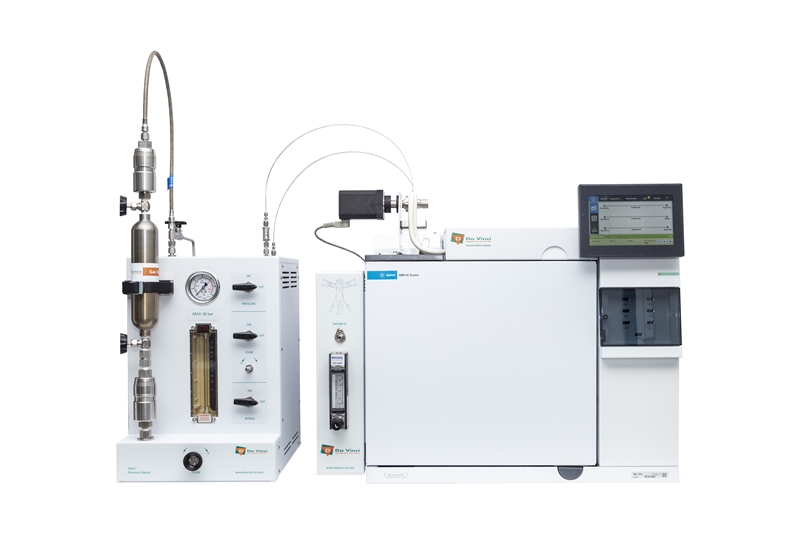

The DVLS LPG system uses an Agilent Gas Chromatograph configured with:

• FID (Flame Ionization Detector) with EPC
• FID (Flame Ionization Detector) with EPC and a Methanizer
• DVLS Side Carrier to heat the columns
• Pressure station for facilitating LPG and gas sampling (optional)

Method setup and primary data acquisition is done by Openlab Chemstation software.

Mol%/Wt%/Vol% conversion, as well as specific LPG calculations are carried out using DVLS PetroReporter software.

Options

DVLS Pressure Station

DVLS PetroReporter
